Lifan 110 motor wiring diagram

Recommended Posts

dunefreak    1,179

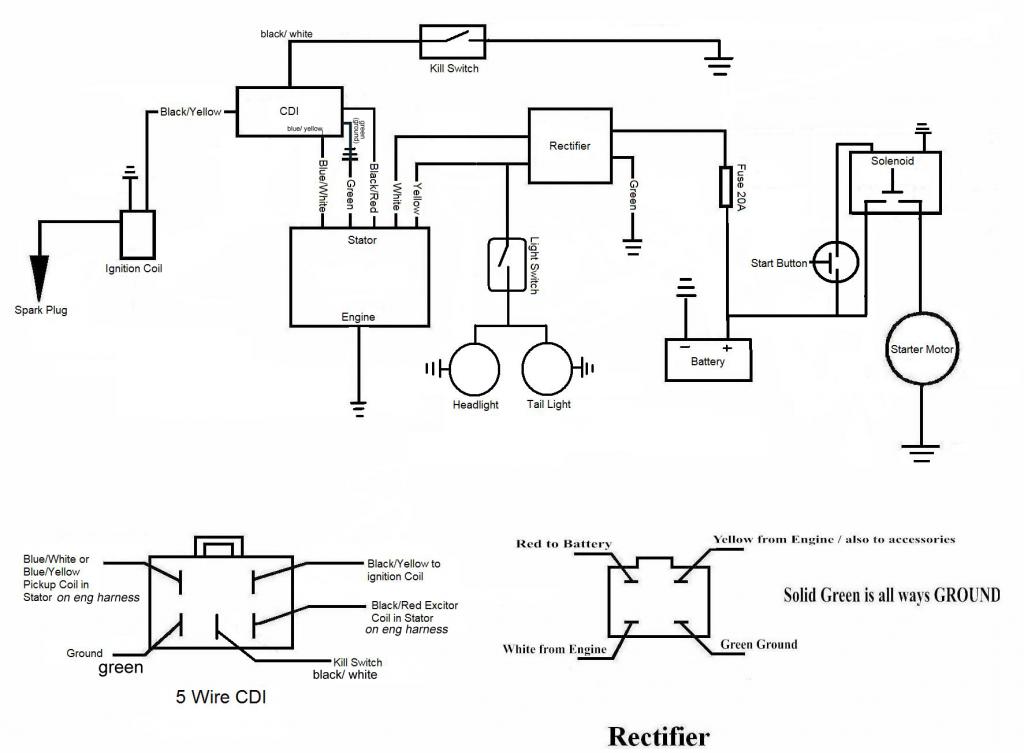

This is for skinner. He was asking me how I wired my 110. I used this wiring diagram. I made some notes/ additions on it because the wiring colors sort of vary between manufacturers I guess. I have the electric start 110 (107) from DRATV.COM

My starter/ kill switch is slightly different, but the diagram shows a basic setup.

post-3-082563600 1292900436_thumb.jpg

This diagram will save you tons of guessing and time. Be sure to click it for larger size and then print this badboy up!

Share this post


Link to post
Share on other sites
nautidog    0

thanks for the wiring diagram. do you know what the smaller bundle of wires coming out of the lifan 110 is for? I can not find a wiring diagram that shows any connections for them.
