I am posting this for a friend of mine here in Las Vegas, please contact Jerry with any questions

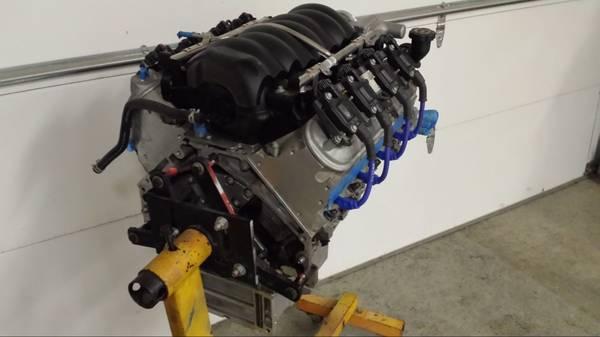

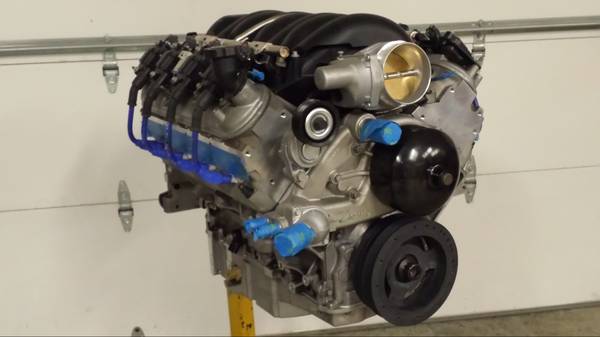

I have a low mileage LS2 engine with 35k miles in it. The motor is a 6.0L LS2 bottom end( hd crank & connecting rods w/ floating pin pistons) with a LS3 top end (new GMPP cylinder heads and LS3 intake manifold setup).
I was building this motor for my 1969 Camaro, but changed directions and decided to use an LS7 instead. This motor would also be great in a sand rail or hot rod. Estimated crank hp is 550. It is a Gen IV motor with a 58X reluctor wheel.
It does not include a wiring harness, computer, fly wheel / Flex plate starter etc.

- The cylinder heads are brand new #823 castings from GM Performance Parts (part #12629063) and have thehollow sodium filled valves
- Comp Cam for rectangle port cyl heads specs: 229/236 dur 623/617 lift 112LSA
- 12 Point head studs
- GM MLS head gaskets
- PAC #8401 Dual "Gold" Valve springs kit with titanium retainers.

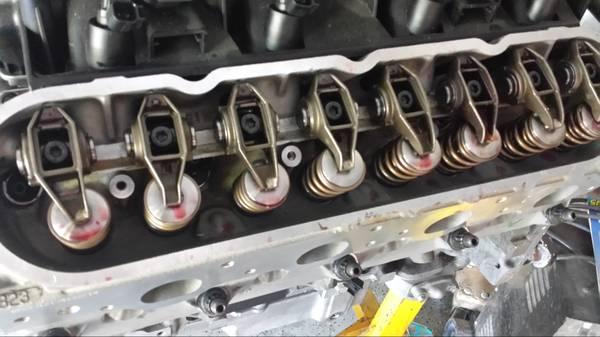

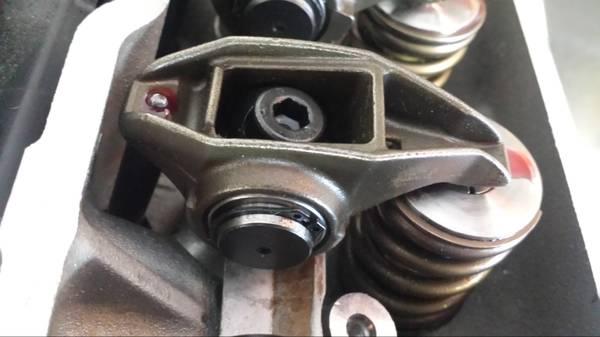

- Comp Cams Trunion upgrade on the Rockers
- .080" Wall 7.4L Chromoly Pushrods
- new GM LS7 Lifters & lifter trays

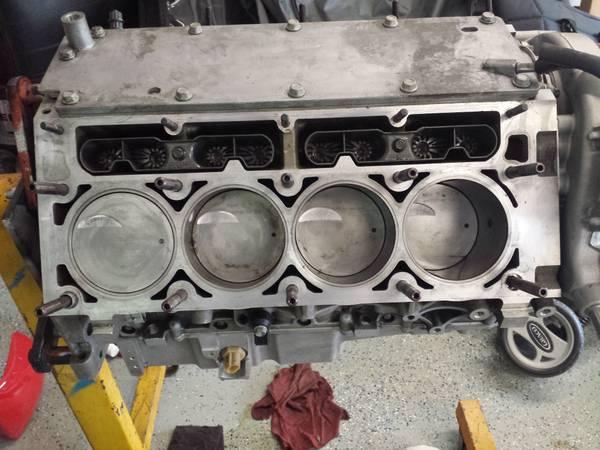

- Pistons have been fly cut on intake side for the cam
- New take off LS3 intake setup with LS3 42# fuel injectors & fuel rails and beauty cover
- New take off water pump
- Corvette balancer
- ARP harmonic Balancer bolt
- Corvette LS3 oil pan (center sump, shallow pan)

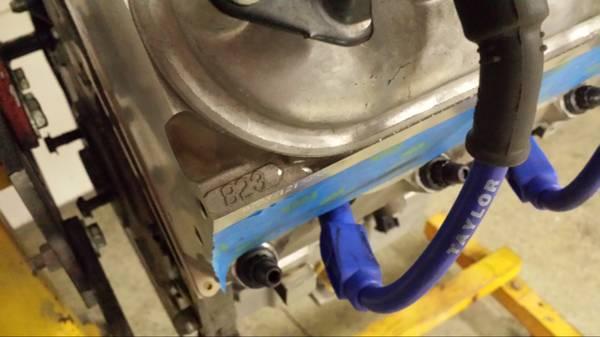

- Taylor spark plug wires

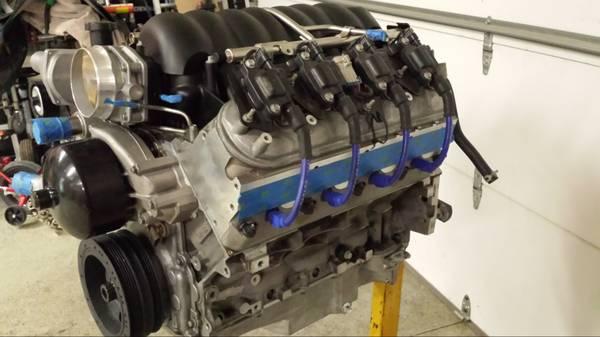

- LS3 coil pacs with harnesses & brackets
- LS2/3 vented pcv valley cover
- LS3 coolant steam port line



Asking $4500 SOLD!!

Call or text Jerry (712)253-7583 note that the area code is 712 and not 702. I live in Vegas but still have an Iowa phone number.

post-3932-0-63976400-1429029212_thumb.jp

post-3932-0-11178100-1429029220_thumb.jp

post-3932-0-59897500-1429029225_thumb.jp

post-3932-0-75970600-1429029232_thumb.jp

post-3932-0-62112800-1429029239_thumb.jp

post-3932-0-23992500-1429029250_thumb.jp

post-3932-0-99935300-1429029256_thumb.jp

Edited by jwcarguy
