joblo

V8rail Build

Recommended Posts

Congrats!! Sorry you couldn't make it out last weekend. But there will be many more trips to come.

Share this post


Link to post
Share on other sites

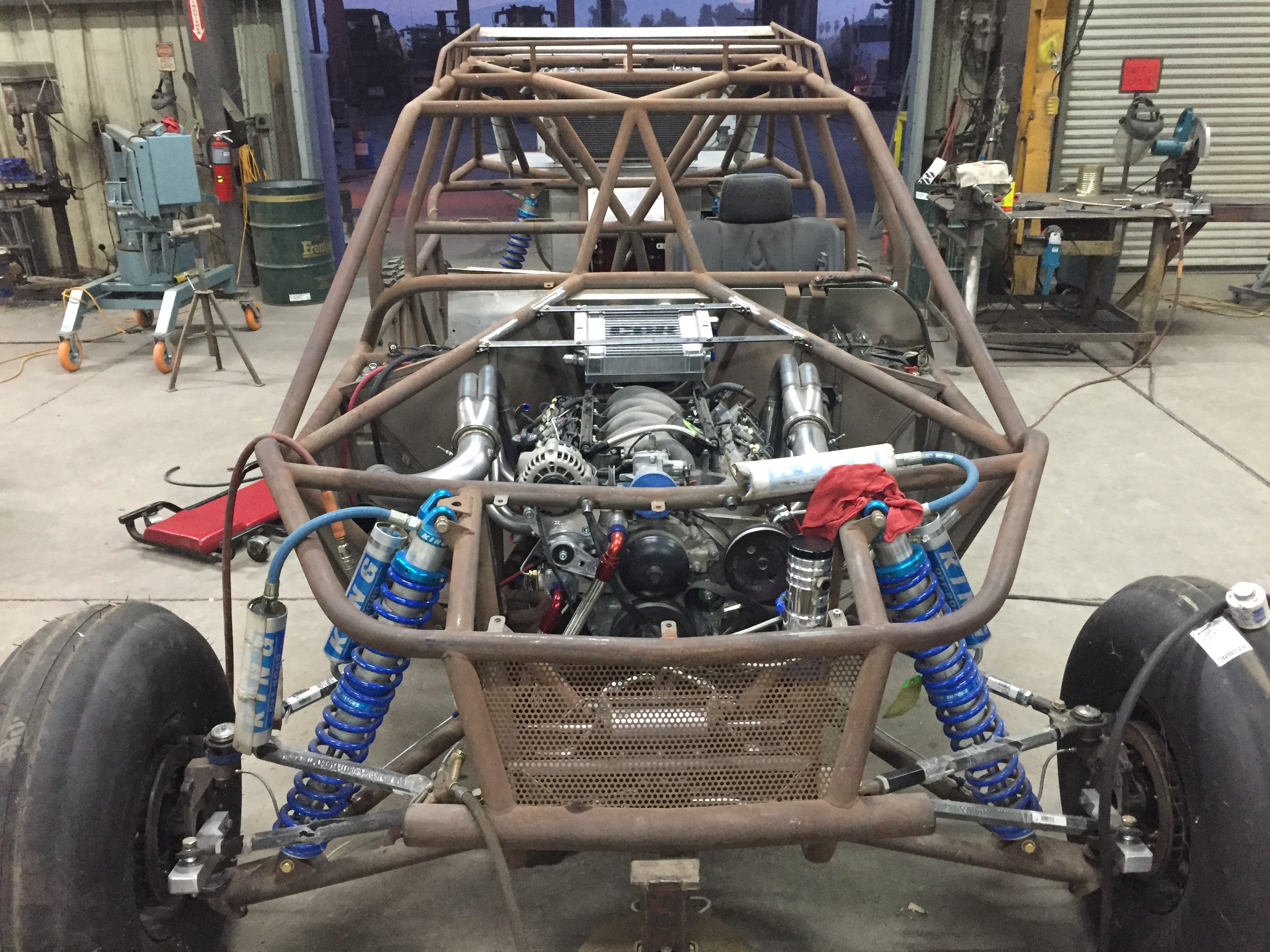

A few more updates

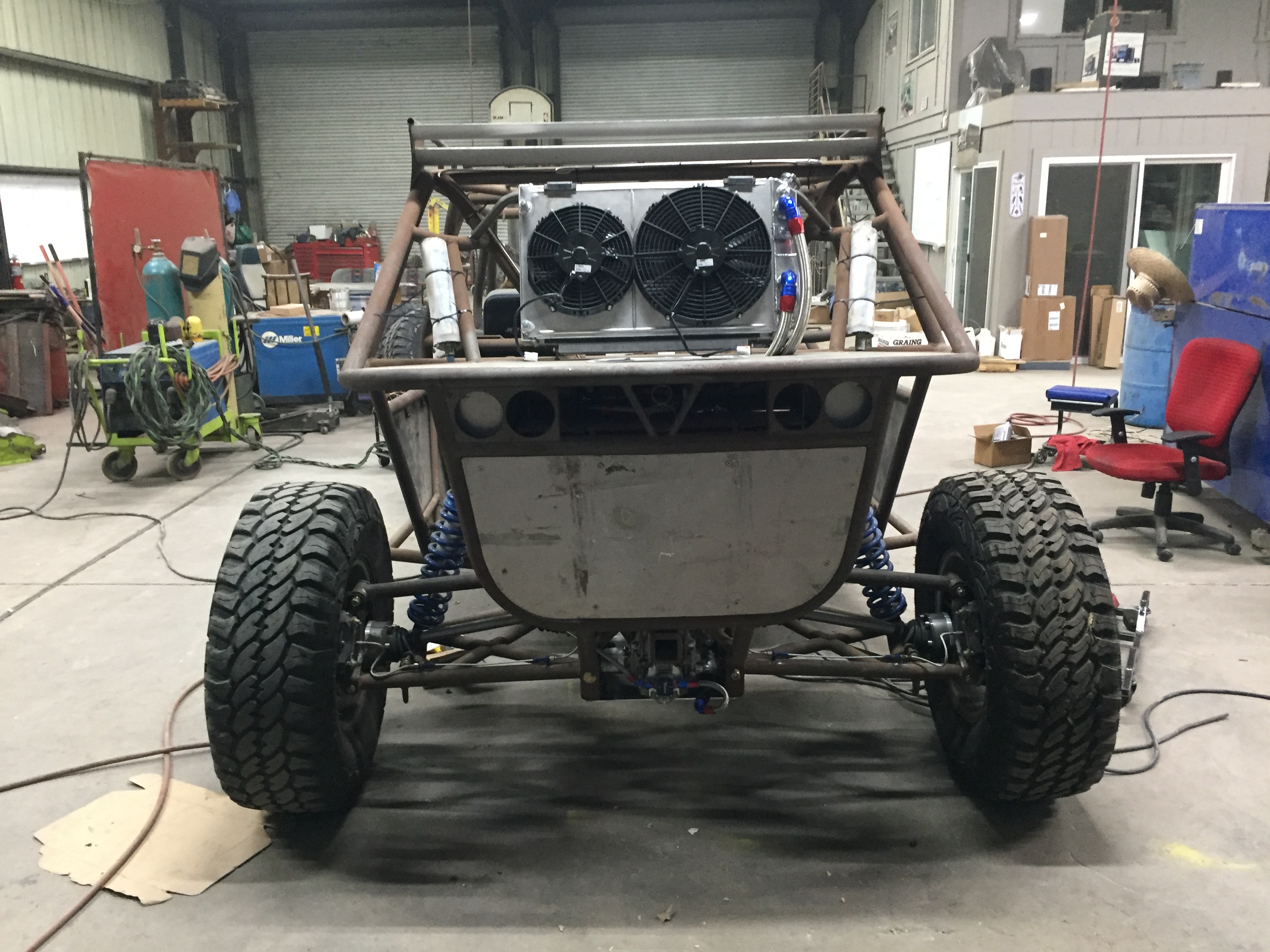

transmission cooler in. Got a different pulley from cbm for the tensioner.  Helped to put a shorter belt on and now the belt doesn’t rub itself. 03789412-A6FD-4E10-AA98-C3B1D911FD78.thumb.jpeg.468c85ee2689e21f1562f8ea9cb0931b.jpeg



Radiator mounted and lines hooked up. I had to make a short hose for suction on the quick change oil line. The fitting I had in there hit the skid pan so it had to go.



Got fluids all in.

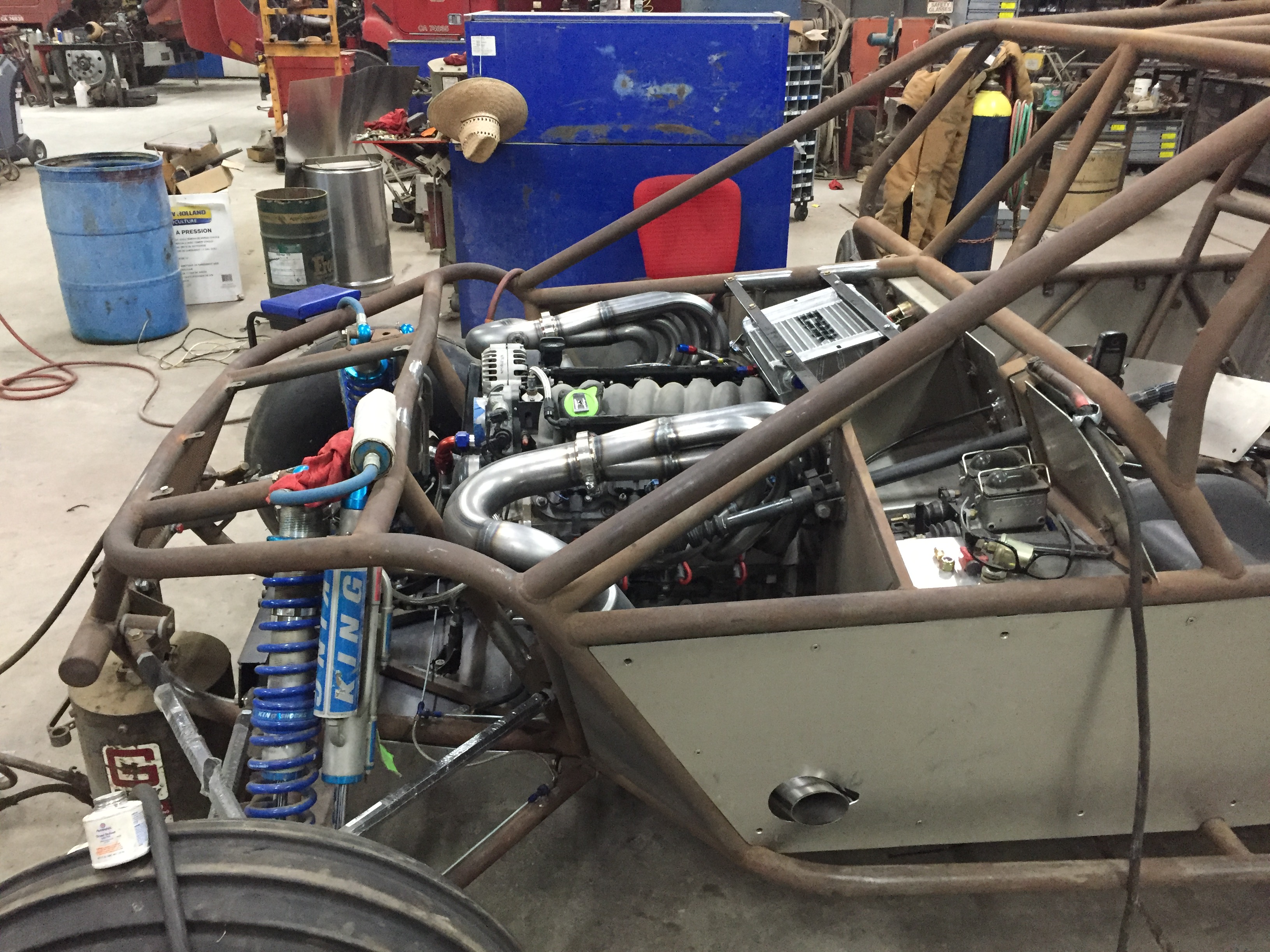

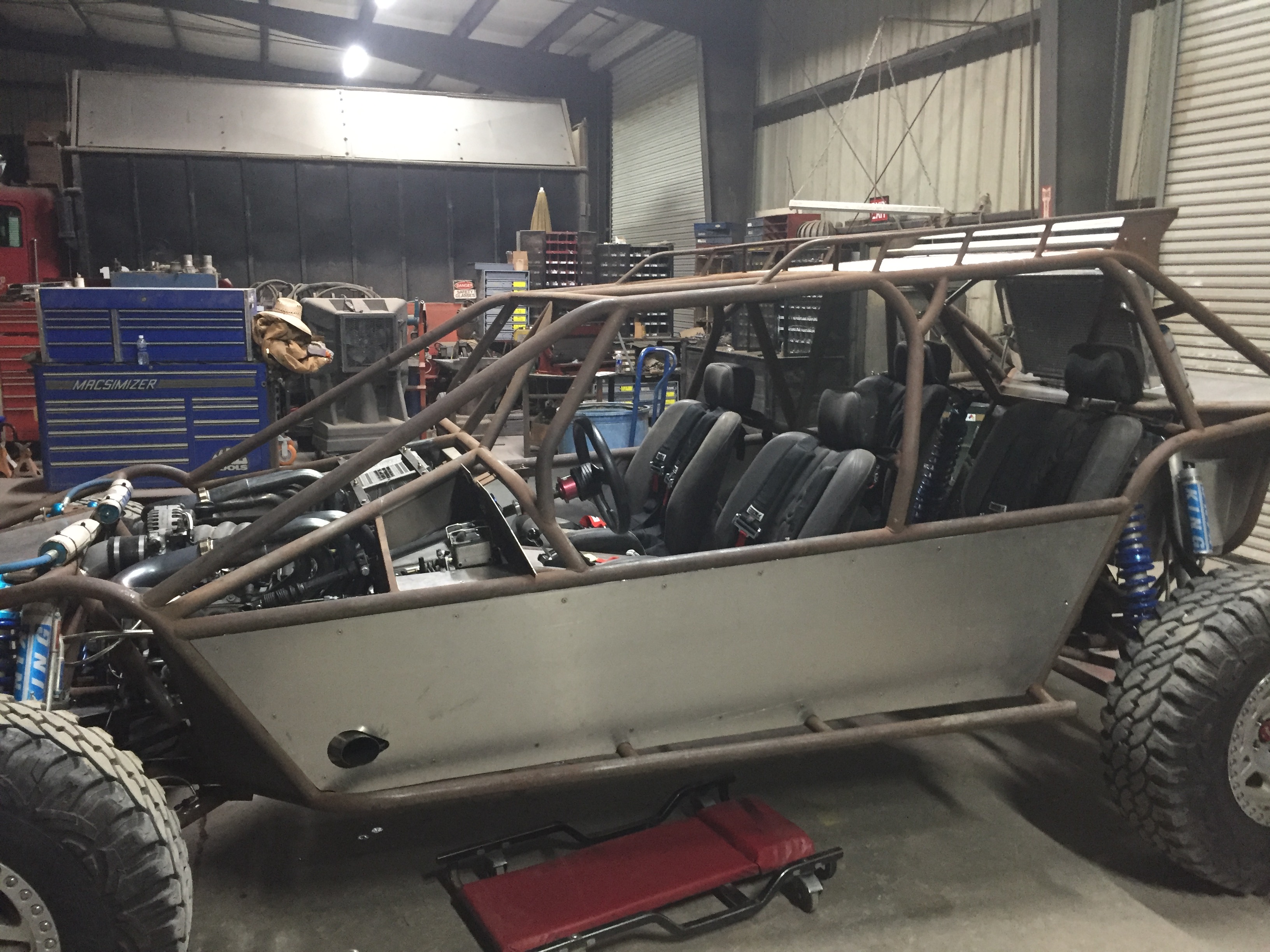

Limit straps done done in the rear. 9D648354-AE2A-40CD-9198-EBE6A604F4FE.thumb.jpeg.bc48cadb8754dafee190b642522814fc.jpeg53F82CDB-C08A-414E-AD2A-3D18944AF21C.thumb.jpeg.2286043acf07bca2570ae7932816bbb4.jpeg

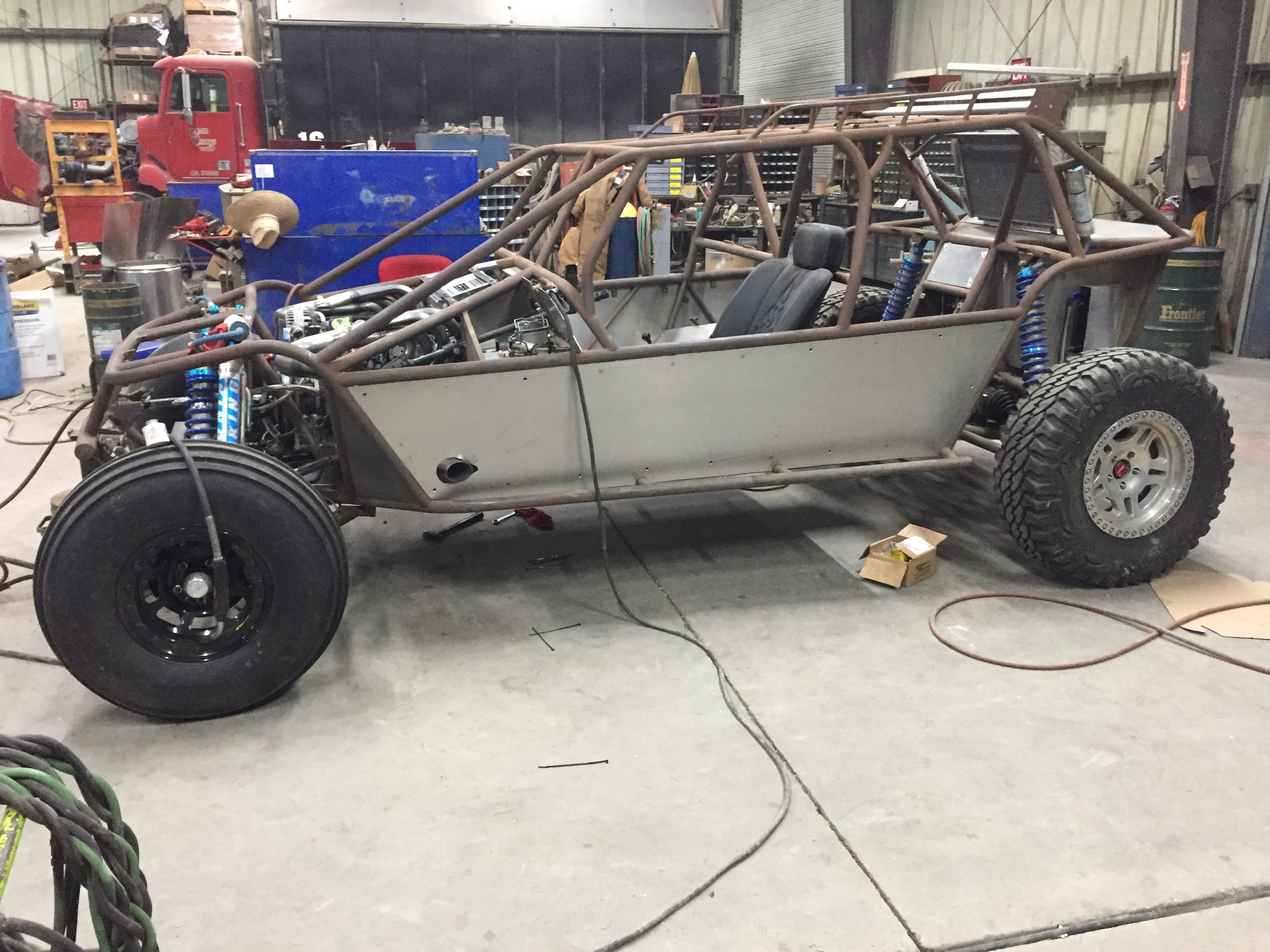

Seats all in. Panels on. All shocks on and charged with nitrogen. With these headers the spark plug wires no longer hit. So that’s something I didn’t have to change in the end.





I had to fight like crazy to get the air bled out of the cooling system. Got it though. The car uses 5/8” studs instead of 1/2”. So I had to drill out the pro comp wheels. Man was that a job. I don’t have a mill, so I had to rig up a way to do it in the drill press. Finally got it. Took the better part of the day just to do that.



Got in a little seat time around the yard. Feels good.


Share this post


Link to post
Share on other sites

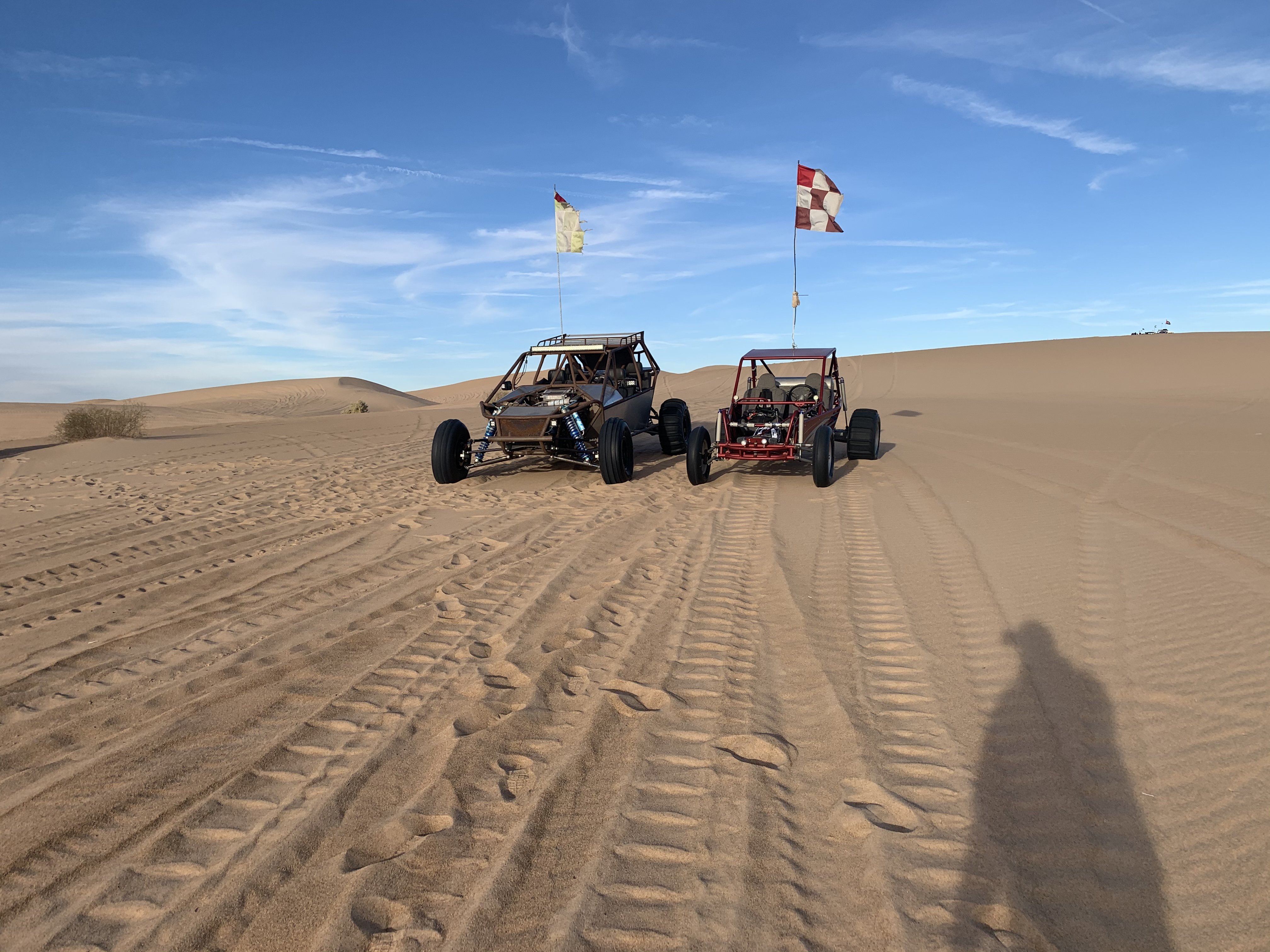

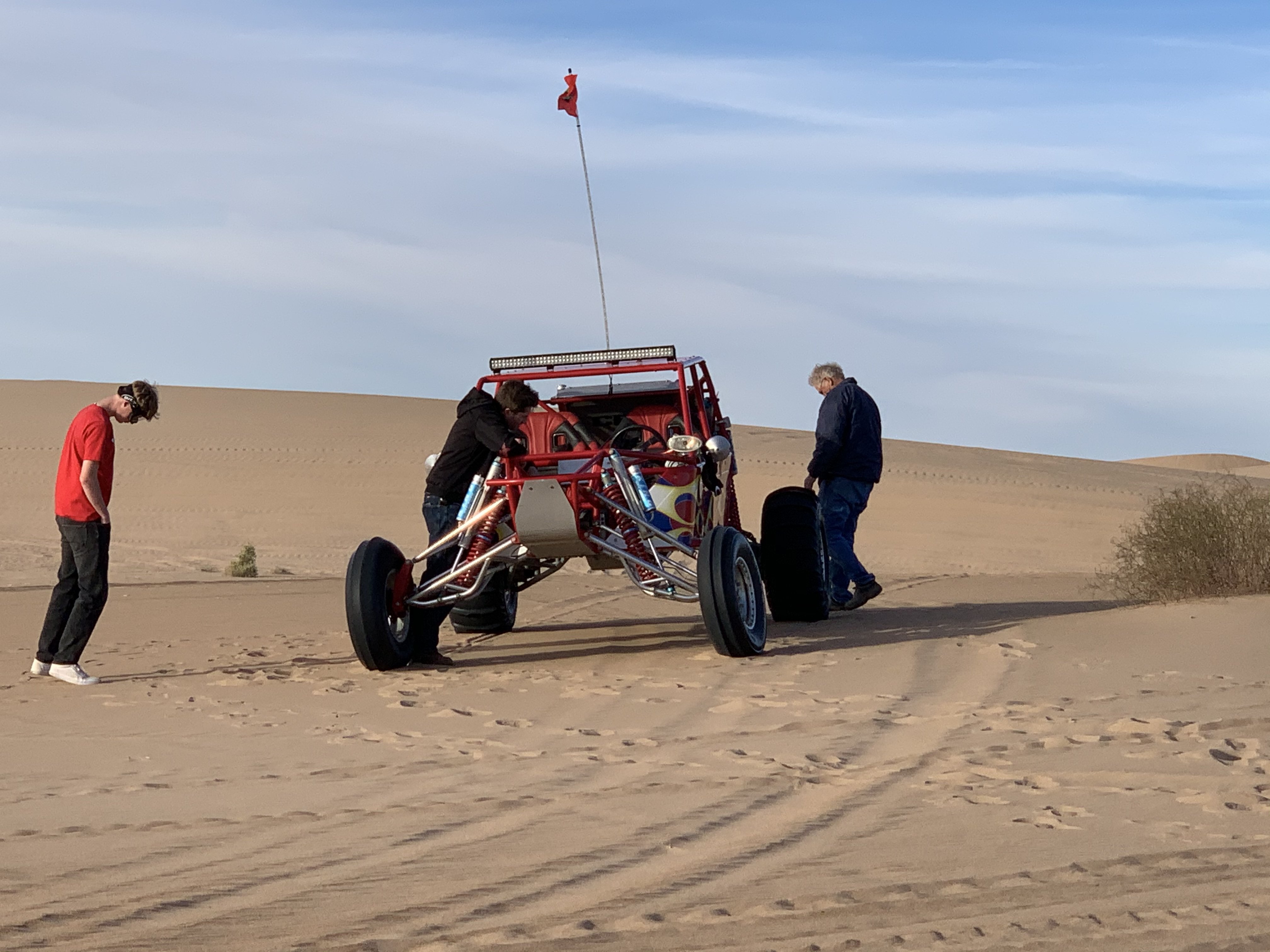

I did get out to the sand. We went to Gordon’s for New Years.



I had some issues though. Car was overheating real bad. Got stuck 3 times. Throttle was sticking and while trying to get that sorted broke the gas pedal in half. Front wheel bearings were to tight. I think that may have been a big contributor to the overheating.

Fan shroud was to tight to the radiator not allowing the fans to pull air across the whole thing. I made a cardboard spacer that helped a lot but ultimately I think the radiator is to small. I ordered a new one to replace it.

After getting all that corrected I got to take a short cruise around in the dark the night before we left. It felt like a new car but still hard to tell. So hopefully I can get some decent dune time on it now. I only burned 5 gallons of gas the whole trip. I can’t wait to run more through it.



On on the way home I dropped the car at cbm. They are going to put a color screen AEM dash in it. I was thinking of switching to throttle by wire but that required a new computer and a few other things pushing the cost way up. So I will have to get the cable working better. They are going to add O-2 sensors and give a new tune on the dyno. It might have been slightly lean adding to the overheating issue. We shall see.

Share this post


Link to post
Share on other sites

It's all part of building a new car. You'll get the bugs worked out. It had to feel good to at least get out and drive it though!



Share this post


Link to post
Share on other sites

Oh yeah definitely. I was impressed with how the car worked. Suspension cycling was good for out of the box. I never even grabbed a wrench for the bypasses. It can use some tuning on that but for the seat time I got it was working nice.



The thing didn't slide as good as I expected. The red car I drove slid the rear much easier. It was running a wider paddle. I'm sure that had a lot to do with it. I might change them out, but for now I just want to get some more seat time before doing that.

Share this post


Link to post
Share on other sites

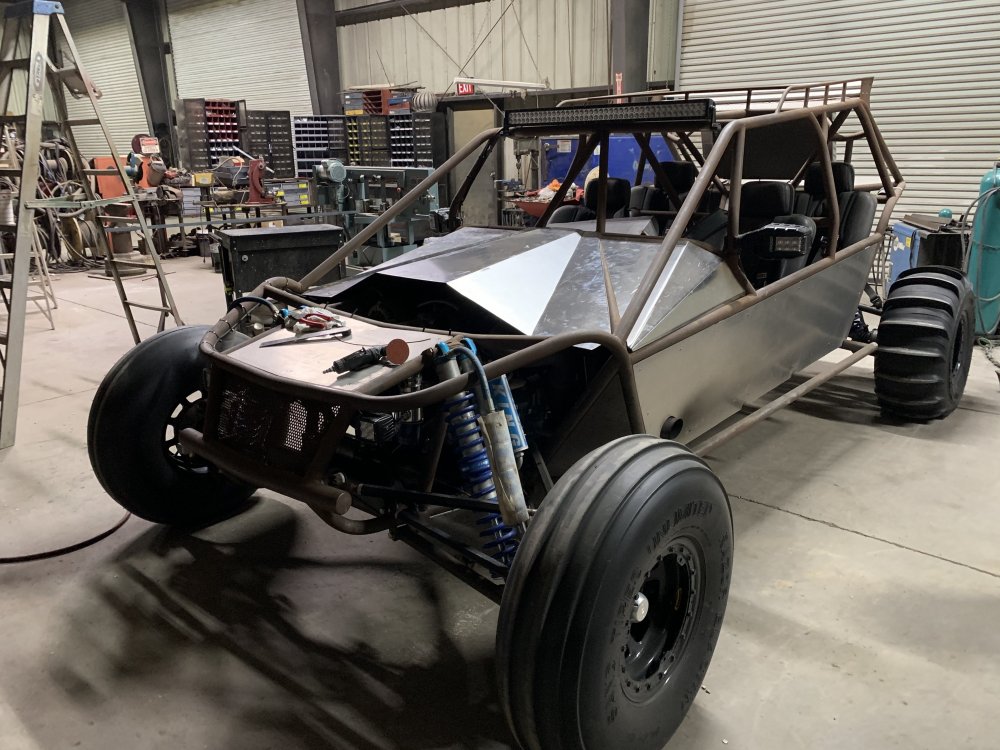

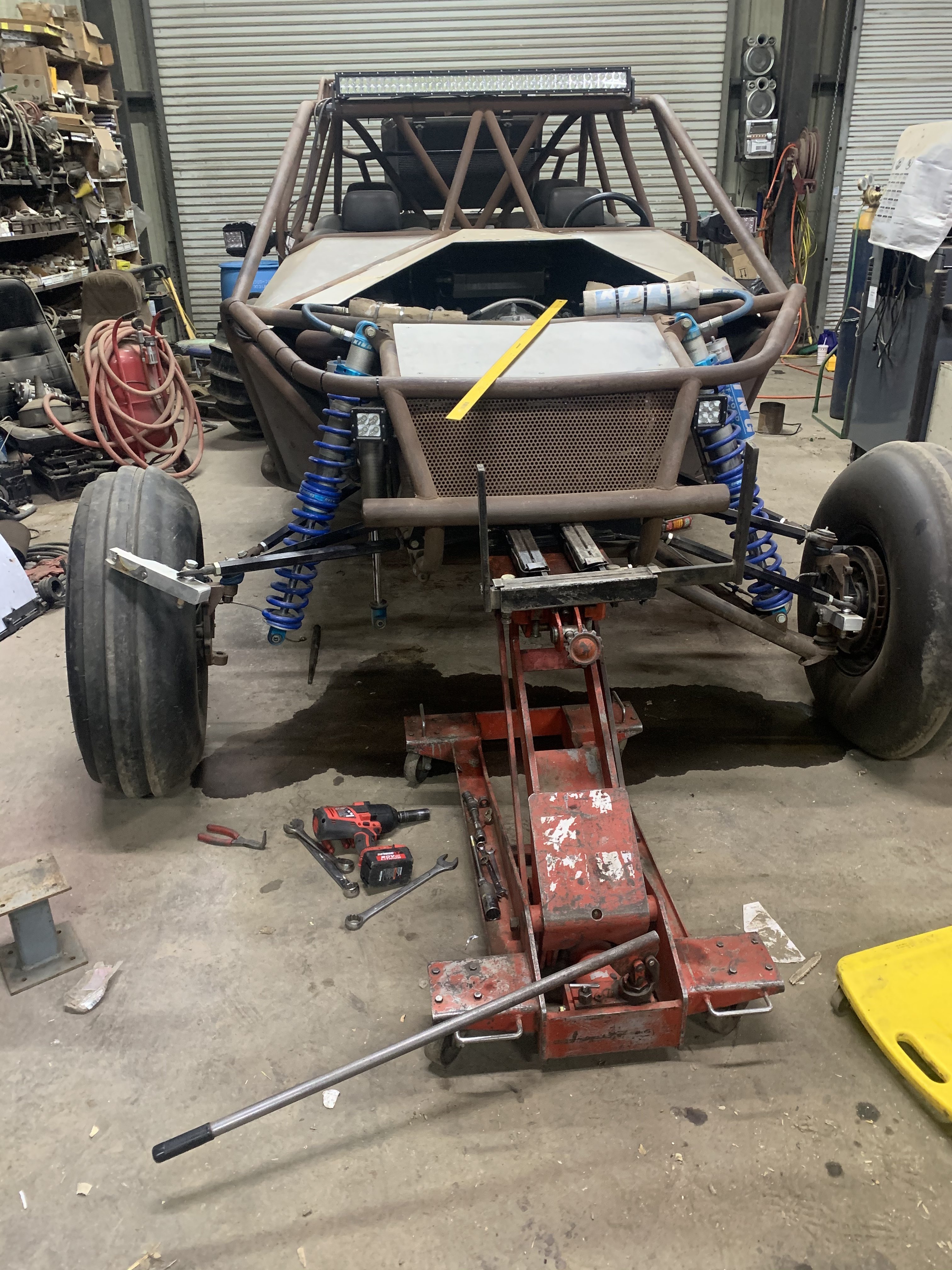

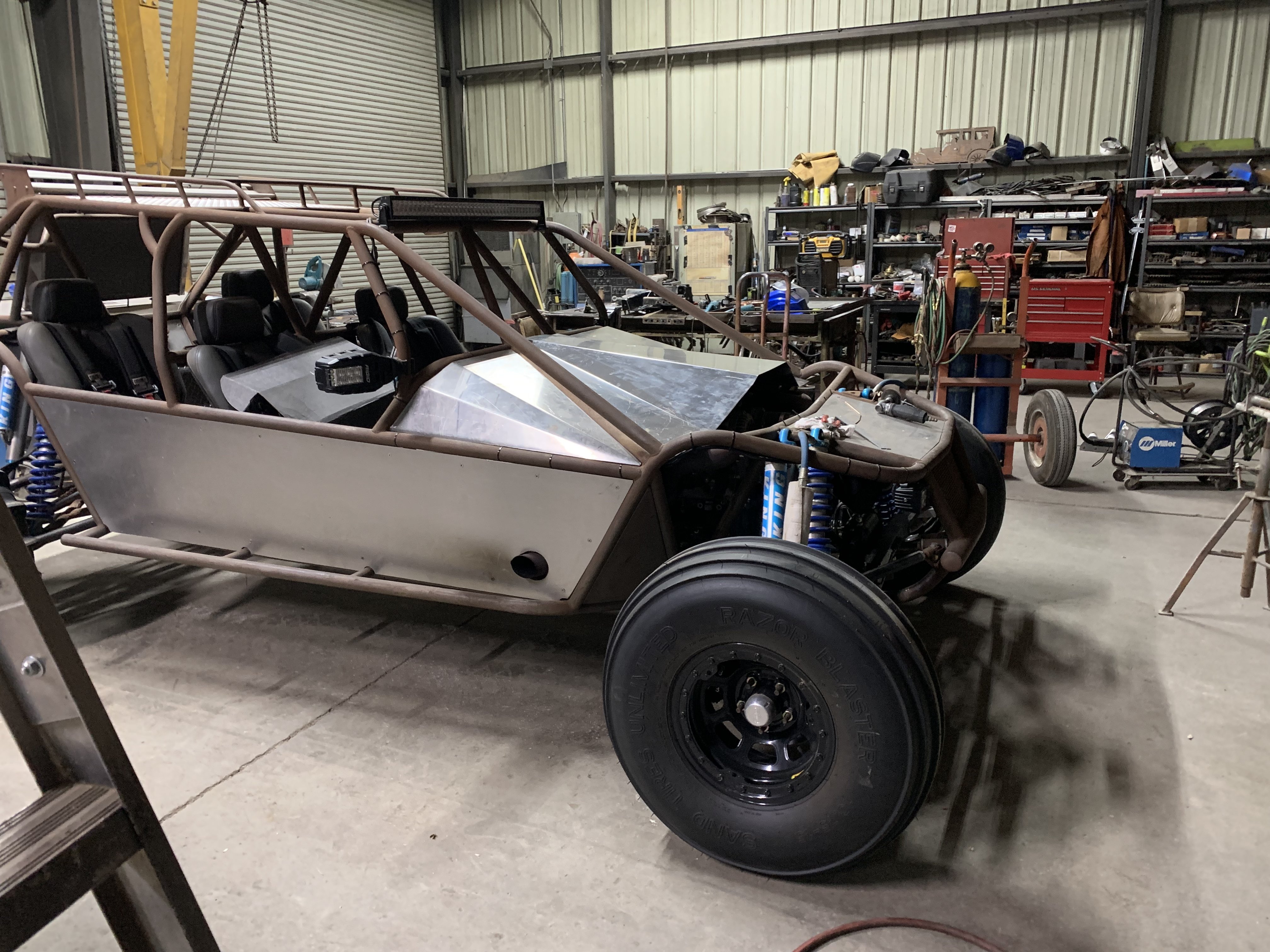

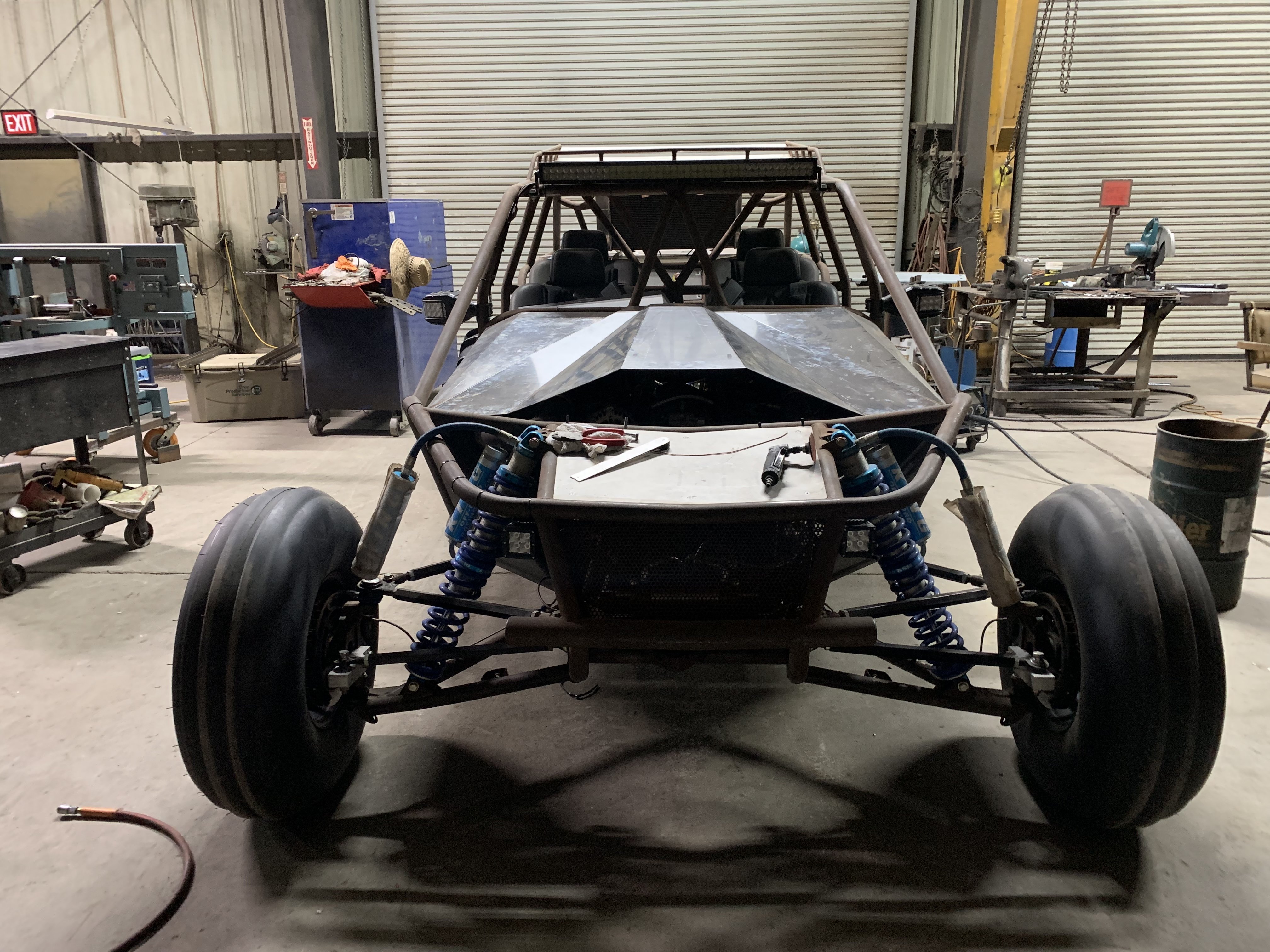

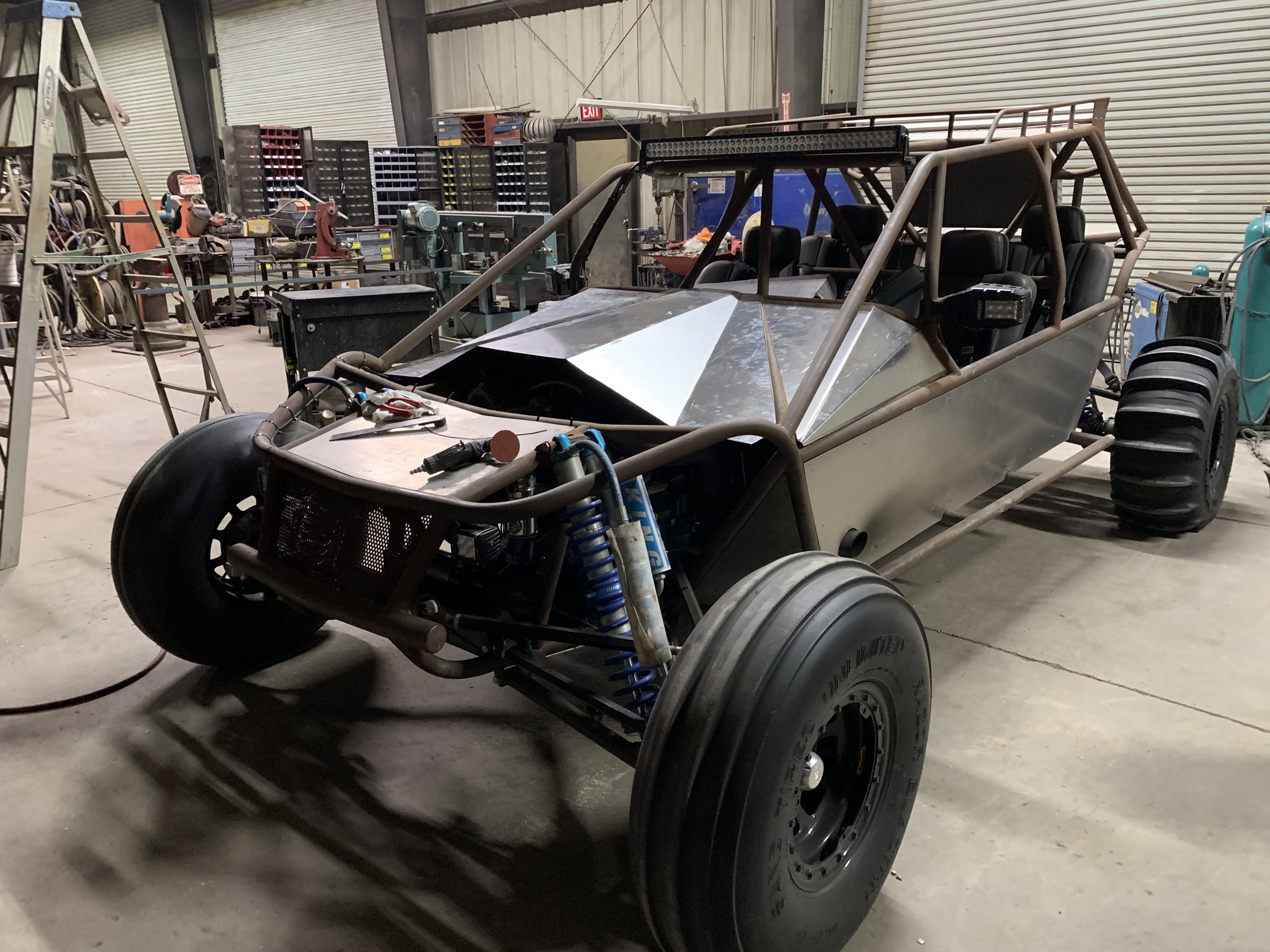

Thought I would update this. I’ve been toying with some aluminum tins for the car. Here’s a couple pictures of what I came up with. Still working on the (hood) still trying to envision it.



I am open to thoughts or ideas.
















Share this post


Link to post
Share on other sites

I would say no hood. Just do the sides or corners like you have.

Share this post


Link to post
Share on other sites

Hhmmm. Do you not like the shape or? Or just like to see the motor in the open?



For me I want to cut it back so it’s not so far forward. It’s just sitting on there. I was going to put some tape on for different cut lines to shape it some.

Share this post


Link to post
Share on other sites

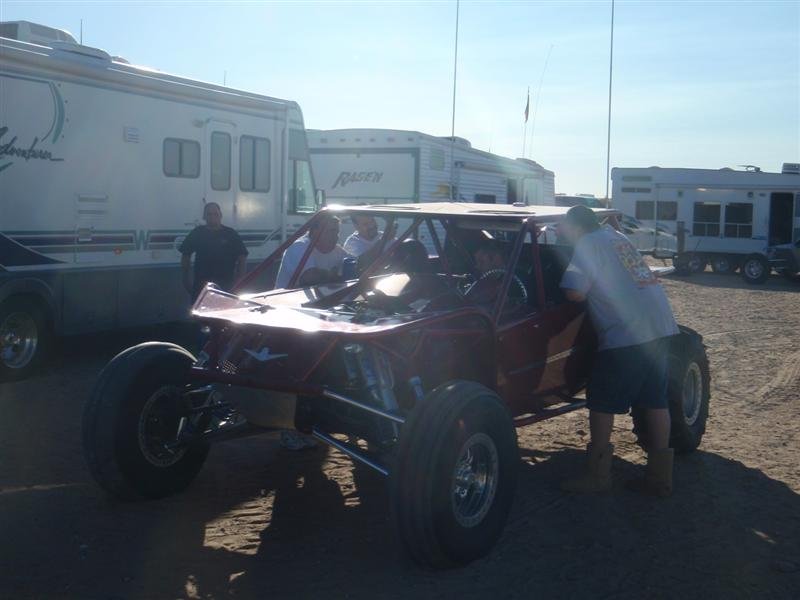

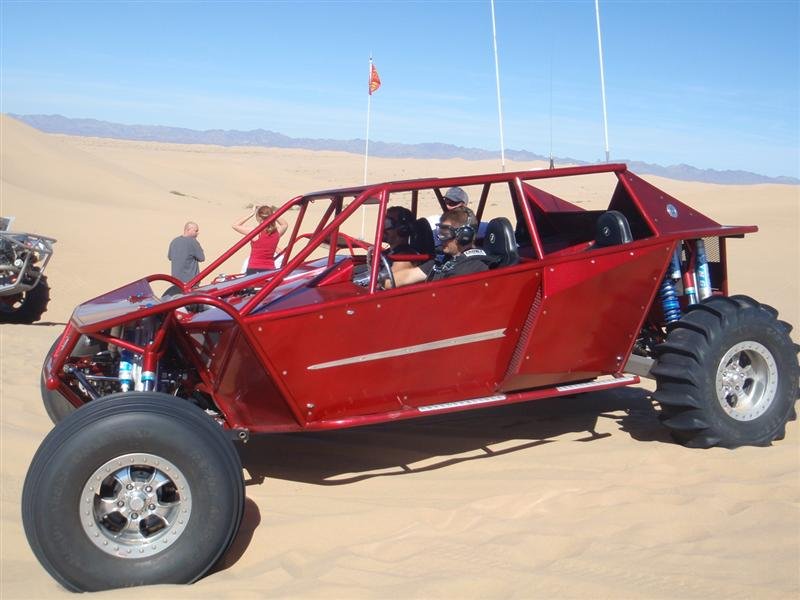

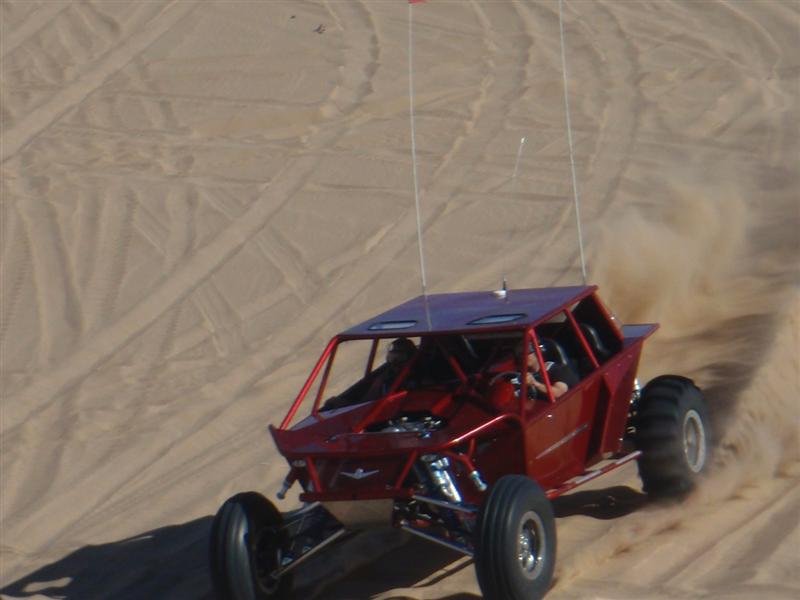

The shape is cool, but looks odd from some angles. I'd prefer to see more of the motor. Maybe just smaller and back farther so the opening is bigger. I tried finding a pic of my buddy Ryan's V8Rail to see what his hood looks like and these are all I could find. Just gives you ideas. I can get more pics if you'd like. He's just down the street.





Glamis Oct 24-26 2008 003.jpg

Glamis Oct 24-26 2008 025.jpg

Glamis Oct 24-26 2008 026.jpg

Glamis Oct 24-26 2008 027.jpg

Share this post


Link to post
Share on other sites

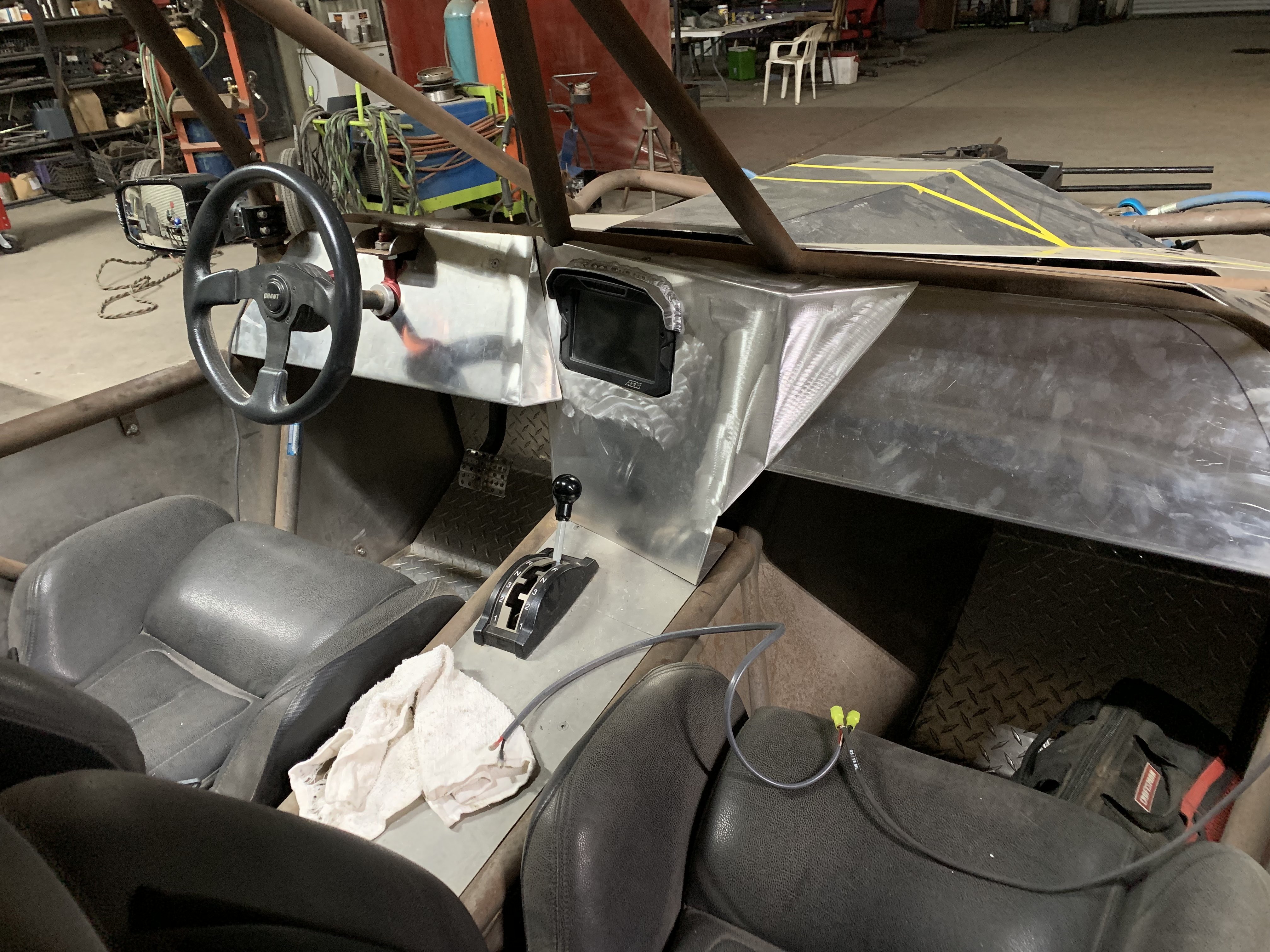

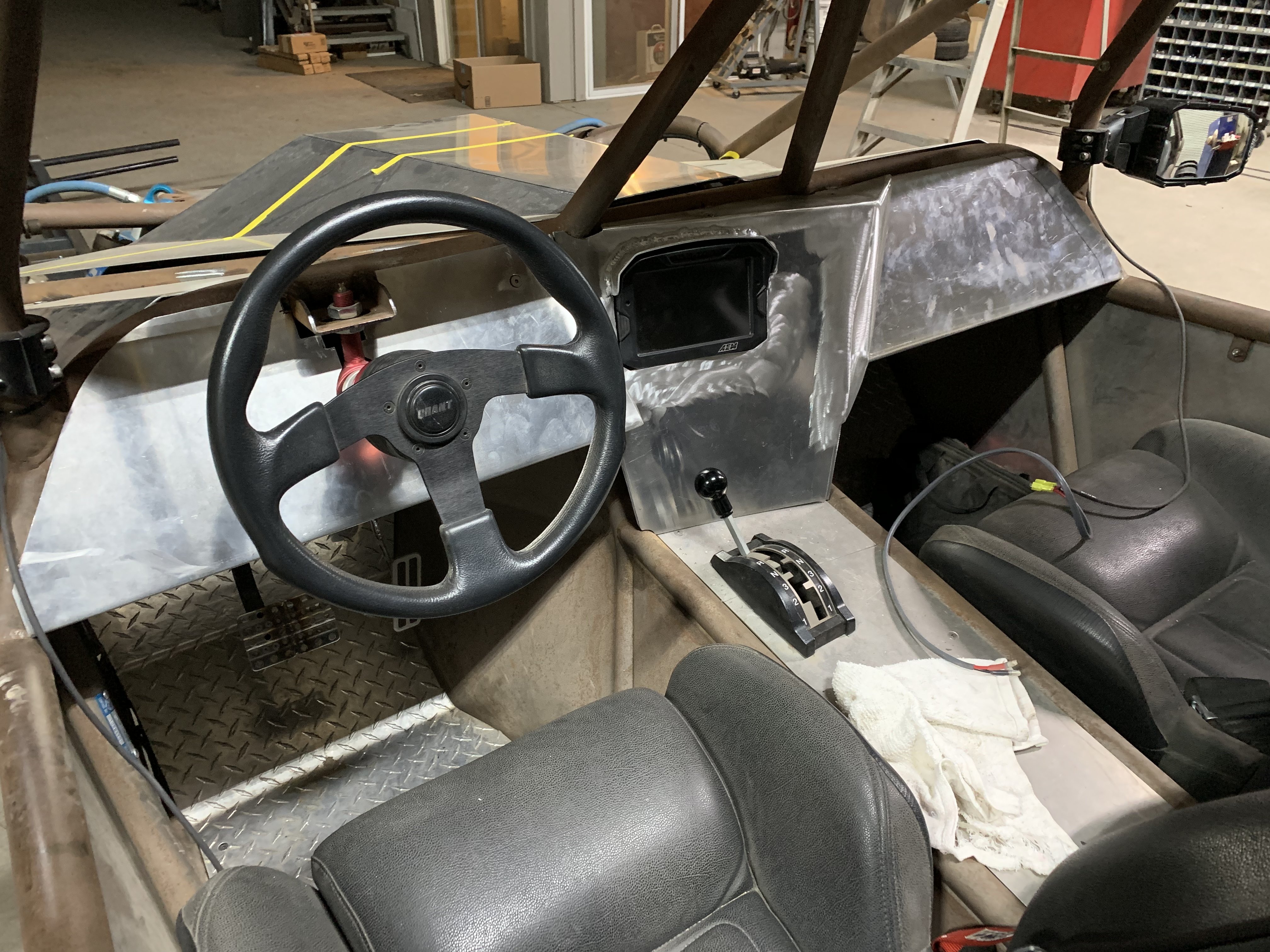

I put the hood on side burner for now. Hindsight is 20/20 though and I should have just finished it instead of jumping to the dash. I really wanted to take care of the dash first but I got distracted with the hood. Anyway here’s a couple pictures. Still more to do but I like how it’s coming along. Just a lot of work.
